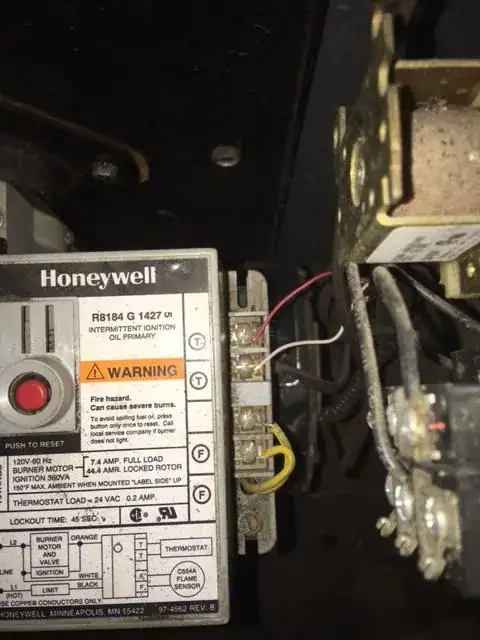

This system is from the 60's era - the furnace has a two T connectors for the R and W (thermostat) and two F connectors - one labeled "Thermostat Load 24VAC 0.2AMP, the other for the Burner Motor Ignition. I want to use a Honeywell Sensi wifi thermostat and have no problem running a new wire to the thermostat for "C", but where would I connect it at the furnace considering the limited connectors (T T F F)? Thanks!
Asked
Active
Viewed 1,873 times
3
Stu
- 31
- 3
-
Can you provide photos and/or a wiring diagram? – ThreePhaseEel Sep 04 '16 at 02:17
