How can I construct a jig for drilling and placement of legs on chairs that allows you to replicate both backward and sideway splay of the legs? Or maybe even point me in the right direction if there's an existing one that's commercially available? I do it by hand now and it is a bear to duplicate without a jig. I need a method, jig or at least some advice.
Asked
Active
Viewed 229 times
1
-
1(Ideally this ought to move to the Woodworking discussion, rather than Home Improvement. But since we're still waiting for Woodworking to be opened, I'm inclined to keep it.) – keshlam Dec 09 '14 at 22:45
-
1Agreed, really hope the Woodworking forum opens soon! – treeNinja Dec 11 '14 at 14:24
1 Answers
3

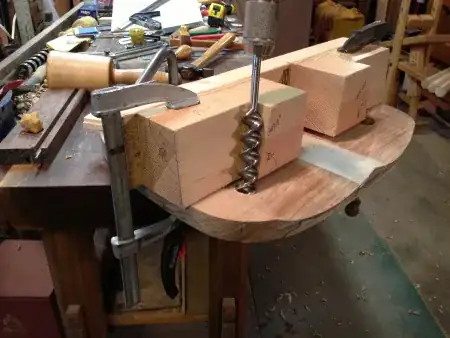

Are you talking about something like this?
If you have access to a miter saw or table saw, it should be fairly easy to make the compound cuts for the guide block. Then keep the shaft of the bit against the corner while you're drilling. You could even use this rudimentary jig to create another hardwood jig with an actual hole in it that can be clamped to the work piece. That way you wouldn't need to worry about the bit wandering out of the corner in the guide blocks.
The author of the blog this is focused on hand woodworking, but it could easily be adapted for a powered drill setup as well.
Thomas Mosers's Windsor Chairmaking (Blog author lists this as original source)
-
1I took the liberty of improving your link only answer. In the future please summarize the content of resources you link to. – Doresoom Dec 12 '14 at 15:52
