I have a ceiling light that is controlled by two switches, however when one of the switches is off the other switch does not work. What is the issue and how can I fix it?
Asked
Active
Viewed 184 times
0
-
2a very similar question has been answered before. Please check out this link and see if it answers your question. Welcome to Stack Overflow! https://diy.stackexchange.com/a/8277/19358 – Rob Elliott Jul 24 '19 at 14:20
-
1Have these 2 switches ever worked together? – brhans Jul 24 '19 at 14:54
-
We'd need to know how the switches are wired to answer this question. – isherwood Jul 24 '19 at 15:28
-
Post a picture if possible. We don't even know if 3-way switches are installed. – Valkor Jul 24 '19 at 19:25
1 Answers
0
Well, look at the simple diagram below:
If one switch is stuck then the other will complete the on/off function, but if one of the parallel wires is broken then the symptoms will be similar. A multimeter to test what is happening would be my next move.

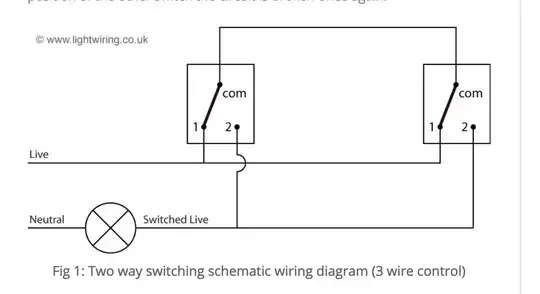

As my simple diagram seems to confuse people, here is a picture taken from this source which shows a similar circuit, but this only needs a single wire to go between the two switches...:
(source: Light Wiring Diagrams)
Glorfindel
- 1,173
- 2
- 14
- 20
Solar Mike
- 27,371
- 2
- 32
- 61
-
1Mike look at the 2 comments that link to how to properly wire a 3 way switch, this is a very common problem and not a single throw switch issue as this issue will always be the case with single throw (on off) but a double throw (3 way) has this issue when improperly connected. – Ed Beal Jul 24 '19 at 15:23
-
@EdBeal are you saying the OP has switches that are 3way ie on-off-on or 2way ie on-off... – Solar Mike Jul 24 '19 at 15:34
-
The only way 2 switches can properly work on 1 circuit is 3 ways not on off on but common normally open and normally closed. The 3 way switch only has 2 positions it toggles from NO to NC , a single throw switch is only open or closed so this would never work with a simple on off switch. – Ed Beal Jul 24 '19 at 15:55
