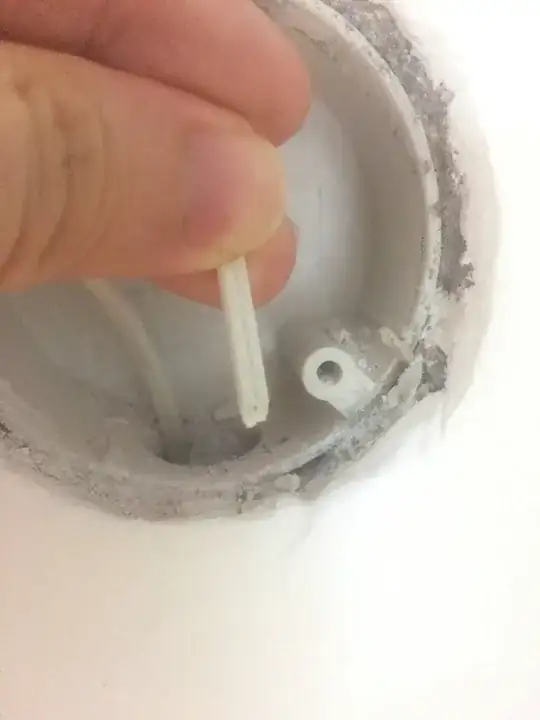

This is apparently a network cable of some sort which I couldn't figure out what it is. Here is the damaged end:

damaged end

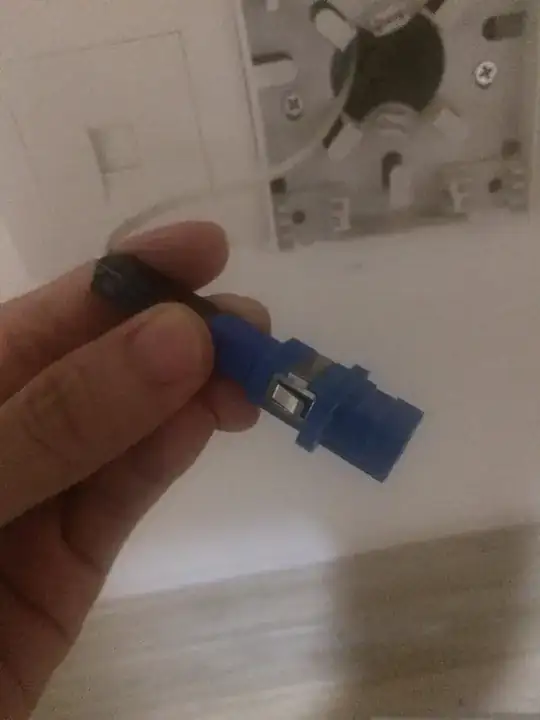

And here is the other end:

enter image description here

It was chopped off accidentally by the contractor and he wasn't sure what is it exactly. Anyone is aware of such cable and how do I reconnect it back? Appreciate it. I tried asking in the network section. Someone suspect that it's a telephone cable?

cylua2
  • 1
  • 2
  • What is connected to the other end of that cable? –  Feb 26 '17 at 22:45
  • i wish i knew @Tyler, the cable is inside the wall. – cylua2 Feb 26 '17 at 22:46
  • ok, what was this end connected to? –  Feb 26 '17 at 22:47
  • @Tyler looks like an ethernet port or some network devices. I'm not too sure myself. but if I stare at the cable hole, directly underneath is an ethernet port. But as you can see, it doesn't look like a ethernet cable – cylua2 Feb 26 '17 at 22:50
  • Are you sure thats not a cable "puller"/"pusher" thing? –  Feb 26 '17 at 22:55
  • @WesleyLee I don't see anything in there or down there for sure. very thin wire but no idea what it does yet. (well, guess cause the wire is chopped off) – cylua2 Feb 26 '17 at 22:58
  • How many conductors? It may be a 2 wire doorbell cable. – cde Feb 26 '17 at 22:58
  • @Passerby good guess! there is no doorbell installed anywhere! so I highly doubt it's a doorbell cable. This building is an office unit but no doorbell from the developer that's for sure. This hole is in the wall when we install additional plug, accidentally got chopped off when we were drilling the wall to lay out the cables – cylua2 Feb 26 '17 at 23:00
  • Looks like a polymer optical fiber. Maybe a field-bus system? –  Feb 26 '17 at 23:15
  • @Andreas I'm hoping its not that. How the hell do i reconnect a polymer optical fiber? :( – cylua2 Feb 26 '17 at 23:18
  • @Andreas I don't think it's a POF though. A POF cable doesn't have an electric wire component at the center of the wiring. – cylua2 Feb 26 '17 at 23:22
  • @cylua2 There is no point in reconnecting unless you know what it is supposed to do. POFs are stiffer than litz wire and do always straighten after being bent (unlike solid copper wire). Be careful, bending below 20mm radius will damage it. –  Feb 26 '17 at 23:25
  • @cylua2 Hmm OK, I was not able to spot the wire. –  Feb 26 '17 at 23:26
  • @Andreas thanks man! I guess the only way to know what it is, is to ask the developer what this delicate piece of crap does. Appreciate all the helps everyone! – cylua2 Feb 26 '17 at 23:28
  • The other option is that it may be a cable for a security device, a door or window sensor? – cde Feb 26 '17 at 23:39
  • @Andreas i just manage to get the other end of the image uploaded. Is this a POF? – cylua2 Feb 26 '17 at 23:47
  • @Andreas yeah. its a fibre optic cable. – cylua2 Feb 26 '17 at 23:49
  • its call a 2 core indoor drop cable. i have called and asked the supply directly. – cylua2 Feb 27 '17 at 17:08

1 Answers1

4

From my point of view, looks like an optical fiber from isp. Not very clear on the core view.

The elaborate connector on the other end probably will explain it, if you took that photo to an electrical supply house.

SDsolar
  • 2,007
  • 1
  • 14
  • 24
  • I was think fiber also + could have been part of a surround sound system. – Ed Beal Feb 27 '17 at 03:41
  • 1
    2nd for also thinking fiber - that also explains why you can't see any metal traces in the cable. Be careful, you do NOT want fiber strands in your finger. – djsmiley2kStaysInside Feb 27 '17 at 04:30
  • I second that portion about glass fragments, @djsmiley2k. Once they work their way in, the only way to get them out is to either just let them fester (the body will expel it) or surgery. Maybe some electrical tape over the cut end would be appropriate. – SDsolar Feb 27 '17 at 18:42
