I have a light switch in a weird place in my house. I'd like to remove the light switch itself and just wire it permanently on and cover it with a flat faceplate. I'd ideally like to actually leave it there for future owners of the house. I have the blank faceplate light switch

Here's the tools I have. I think I have everything I need. The question is, aside from shutting off the power I am lost at what do I do to turn the switch permanently on.

Tools for Reference: enter image description here

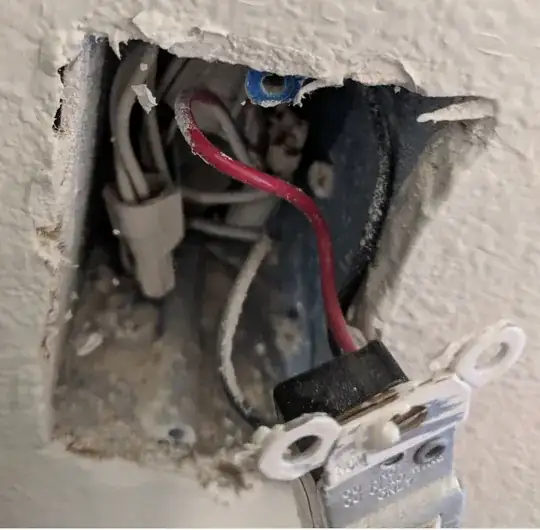

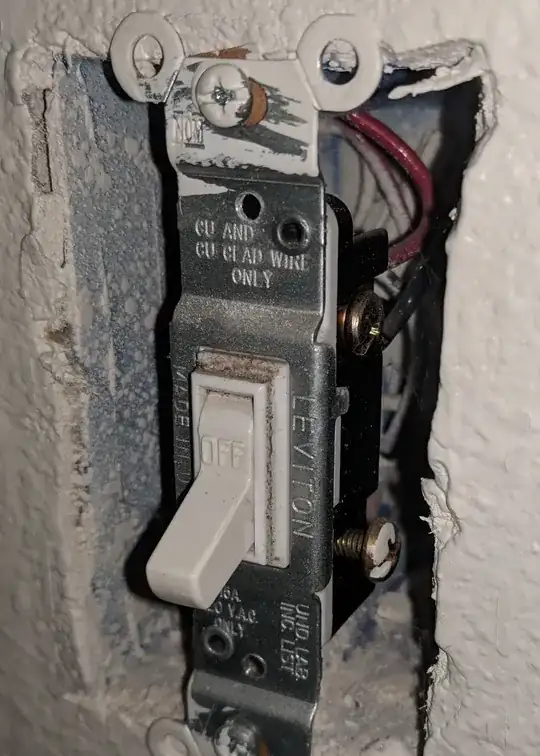

Edit: behind the light switch images: enter image description here enter image description here

So there's 3 wires behind the switch.

Edit 2: I was wrong about where the wires connected: enter image description here enter image description here enter image description here enter image description here

EDIT Completed JOB: enter image description here enter image description here enter image description here

Dan Siegel
  • 33
  • 3
  • 1
    Hello, and welcome to Home Improvement. Would you post a picture of the wiring behind the switch? Just pull the switch out; don't disconnect any of the wires. – Daniel Griscom Mar 10 '19 at 20:44
  • Can you post photos of the existing wiring in the switch box? – ThreePhaseEel Mar 10 '19 at 21:40
  • Are there three insulated wires connected to the switch? Is this one of a pair of switches either one of which can switch the light on or switch it off? – Jim Stewart Mar 10 '19 at 23:41
  • There's 3 wires, a red and black on the right side, and then another black on that's covered in paint on the left side. – Dan Siegel Mar 11 '19 at 00:38
  • This doesn't answer your question, but if you just want to keep the switch from being inadvertently turned off, you could keep the switch as-is,but add a light switch guard to keep it from being switched accidentally (it's open on the side so you can switch it if you really want to) – Johnny Mar 11 '19 at 19:30

2 Answers2

2

In order to wire this switch as "always on", all three wires should be removed from the switch and bundled together with a wire nut.

The three wires is a bit non-standard and might lead you to believe this is a 3-way switch or some other kind of odd arrangement, but someone has used the stab connector and the screw on the top of this standard switch to tie those two wires together. If this switch only controls one light then one of the top wires is the power coming in, the other top wire is going on to another switch or outlet, and the bottom single wire is what provides power to your light.

If you wanted the switch to be "always off" the top two wires should be connected with a wire nut and the bottom wire would be capped off. For always on, bundle all three wires.

To release the wires from the stab connectors, there is a slot that you can fit a small screw driver in to push open the connector.

JPhi1618
  • 27,909
  • 4
  • 53
  • 89
  • You don't necessarily want to connect all three wires that were connected to the switch. The two wires on the same side should be connected (assuming this is a standard simple switch), but the third wire may be a ground. You would not want to connect a hot or a switched hot to a ground. You should find out what the function of the 3rd wire is before you decide what to do with it. – Jim Stewart Mar 11 '19 at 18:19
  • I think it's pretty safe bet that the bottom black wire is going into the stab connector on the back. In the last picture you can barley see the outline of the texture covered wire curving into the back of the switch. Also, if it's not going into the stab connector, then why is there no wire on the bottom screw? And if someone cared enough to ground a switch, they'd use a proper ground wire - most that I see are not grounded at all. – JPhi1618 Mar 11 '19 at 18:26
  • Would another picture be helpful? – Dan Siegel Mar 11 '19 at 18:38
  • A picture of the back of the switch would clear up any remaining questions. Seeing where all three wires are attached is what Jim is questioning. – JPhi1618 Mar 11 '19 at 18:39
  • turns out I was wrong about where the 3rd wire connected. They're all connected on the right. I updated and added a new image. – Dan Siegel Mar 11 '19 at 18:54
  • Great pictures this time - I wish I could give you more than one upvote. The connection of the wires does confirm what I stated in my answer - bundle them all together to have the switch always on. Turn off the power first at the breaker tho - one of those wires is always hot. – JPhi1618 Mar 11 '19 at 18:58
  • OK I suppose the screw which had two wires on it was simply being used to carry the line hot onto the next box or (less likely) the screw with two wires is the switched hot feeding two different lights. In either of these two cases one would simply connect all three wires which had been attached to the switch in one wire nut. Those yellow wire nuts might not hold three wires if the wires are #12, but just try it and see. – Jim Stewart Mar 11 '19 at 19:04
  • I just went ahead and swapped them out for bigger ones rather. Completion photos added as an update. – Dan Siegel Mar 12 '19 at 18:13
0
  1. Turn off power at breaker
  2. Cut black and red wires conected to switch, or unwire them.
  3. Strip according to strip gauge and wire-nut them together, cover with electrical tape.
  4. Put back in box.
  5. Attach faceplate
  6. Turn power back on.
gbronner
  • 5,573
  • 1
  • 17
  • 47
  • 2
    Process is correct except wires should be detached from existing switch by unscrewing or pulling out of backstabs, NOT by cutting. Only cut the wires if there is no alternative. Also, electrical tape should not be necessary for two wires connected with a wire nut, though it won't hurt. – manassehkatz-Moving 2 Codidact Mar 10 '19 at 21:48
  • 2
    Well, if electrical tape is required to keep the wire nut from falling off, then the wire nut is a bad connection that will fail ugly. – Harper - Reinstate Monica Mar 10 '19 at 22:59
  • so connect the red and black on the right side. What about the 3rd wire (I'm guessing that's the ground)? – Dan Siegel Mar 10 '19 at 23:04
  • 1
    Your 3rd wire is either a hot, or a mis-wired neutral. It looks as though you have a 3-way switch. Another switch somewhere in that circuit that controls the same light? 3-way would mean you have a traveler, hot and switched hot. You might need to do a little more wire changes if this is the case, at the other switch and the light. – Jeff Cates Mar 11 '19 at 02:00
  • 2
    @JeffCates I also thought "must be a 3-way because of the extra wire" except that it has OFF embossed on the switch which would not belong on a 3-way switch because "OFF" is not always the same direction. – manassehkatz-Moving 2 Codidact Mar 11 '19 at 03:48
  • 1
    @manassehkatz so the 3rd wire must be connected to the grounding terminal? Did someone use a piece of insulated wire as a pigtail to connect the ground wire to the grounding terminal? If this is the only switch for an outlet, then if it is removed it will be always on. Is this what is wanted? Will it be a code violation? (If this is a receptacle that is switched, is it the only wall switch at the entrance to a room capable of controlling a light? – Jim Stewart Mar 11 '19 at 12:41
  • @JimStewart It could be ground - that would make sense. Hard to tell from the pictures. Nothing wrong with insulated pigtail ground, except it has to be green and that does not appear to be the case. (And if you don't have green, just strip a spare piece of black or white). Nothing wrong with a light on all the time - quite common in stairwells, security lights outside, etc. and not the big power waste (relatively speaking) that it used to be. AFAIK wrt NEC there is no issue as long as box still accessible (as planned). Whether IRC or similar requires switched? Don't know about that. – manassehkatz-Moving 2 Codidact Mar 11 '19 at 13:50
  • 1
    Kind of odd to be a ground, if you look further back in the box, you will notice it is not a pigtail, but goes into the cable, and out from the cable also comes the bare ground. So this is a confusing wire here. We need to see what it is actually hooked to on the side of the switch! Could it be a back stab? In this case the red wire could go to another outlet or switch for power. They used back stab and screw terminal instead of pigtails???? – Jeff Cates Mar 11 '19 at 20:46
