Noyemberyan Armenia composting toilet

This page should contain more details. Hopefully there is some more content in that willd has access to. Maybe we can ask Dan (dan_retzyahoocom) for more content as well. If we can not contact Dan for more information, we can just include some more general information. --Lonny 11:49, 22 April 2008 (PDT)

• Designed and Built by Peace Corps Volunteer, Dan Retz, April, 2004
• Details available on request: dan_retz

Images

•
  Picture of the house
•
  View Showing location of composter
•
  Composting Chamber in basement/storage area
•
  Urine line to be linked with gray water system, Screened air inlets.
•
  Detail showing movable lid to remove and install the barrel.
•
  Detail of a "bag" made from flour sacks designed to support and maximize ventilation of compost (bag is to be mounted inside of barrel).
•

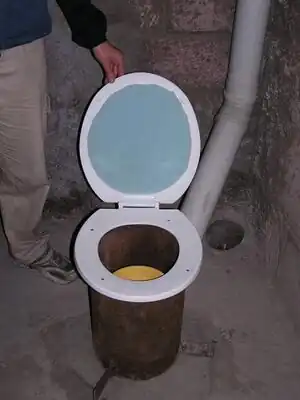

  Picture of the installed toilet stool and ventilation pipe. Fan is installed inside the pipe just above the ceiling.
•
  Detail of urine diversion funnel. The funnel is plumbed to a 1" pipe which exits the toilet chute via a 90 degree fitting, and later is plumbed to a gray water system.
•
  Detail of vent pipe attachment.
•
  Another view of the composting bag.
•
  Picture showing foam mattress used as a air gasket and protection from flies. Detail of urine line combined with gray water system. Later project will be to divert this combined system for usage in the garden.
•

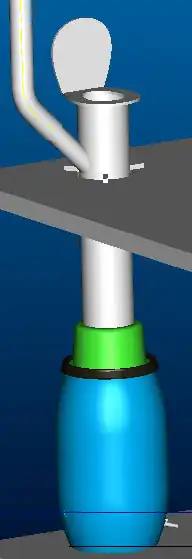

  Design drawings
•
  Design drawings
•
  Design drawings

Excel Cost schedule

Powerpoint presentation on situation in Armenia

• http://www.slideshare.net/willjermuk/sustainable-sanitation-and-the-environment
